What is ISO 11783-1?

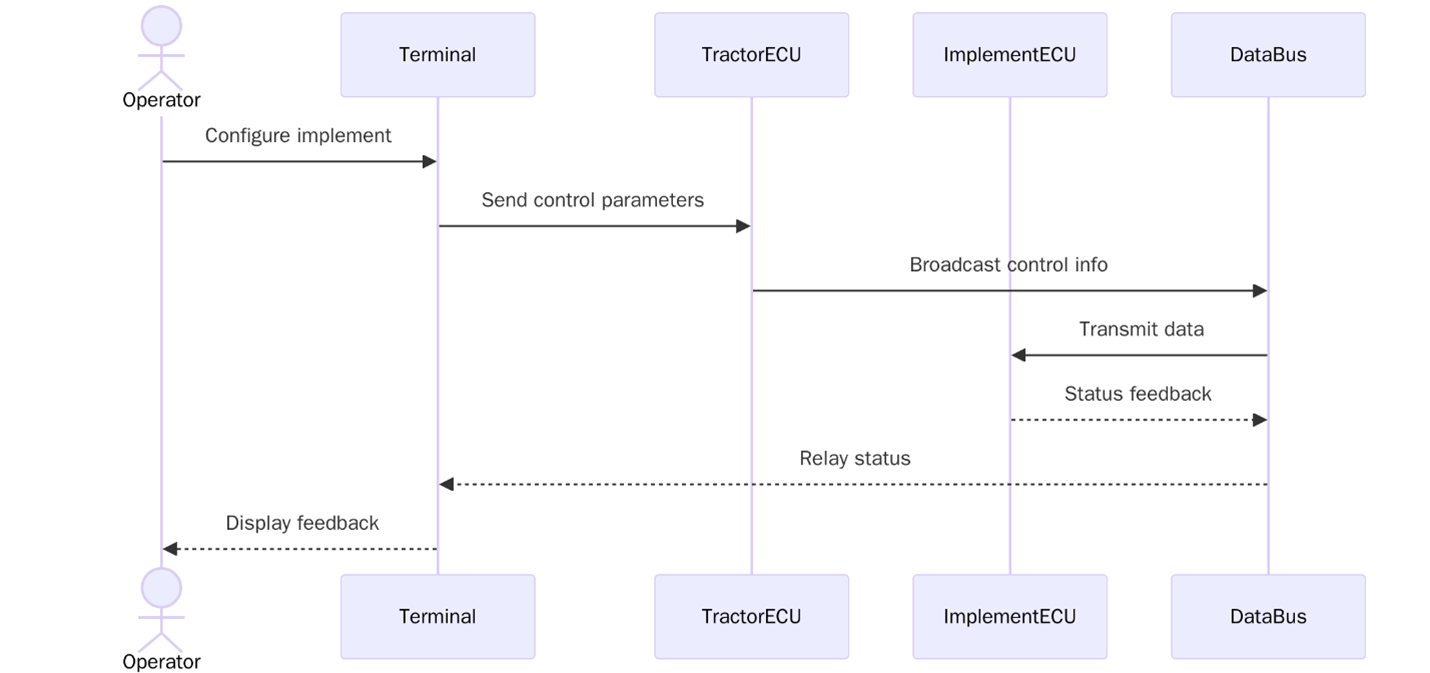

ISO 11783-1 is the foundational part of a multi-part standard focused on electronic communication between control systems on agricultural and forestry machinery. This standard defines the general structure of the network that enables different machines, tools, and control units to work together through a shared communication protocol. The system is built on the CANbus technology, often referred to as the ISOBUS system, which helps tractors and implements interact efficiently during farming or forestry operations.
The standard allows devices such as tractors, sprayers, harvesters, and sensors to exchange data regardless of the manufacturer. In practical terms, this makes it easier for farmers and operators to mix and match equipment on the field without facing data compatibility issues. ISO 11783-1 sets the foundation for machine-to-machine communication which helps improve control accuracy, reduce manual input, and increase workflow transparency.
For audits or certification, contact us at support@pacificcert.com
Purpose
The purpose of ISO 11783-1 is to provide a framework for interoperable data exchange between mobile agricultural equipment. With this base structure in place, all subsequent parts of ISO 11783 can define how specific communication tasks are handled—such as file formats, messages, and task controllers.
The goal is to ensure consistency and coordination between equipment manufacturers so that operators in the field can manage implements using a single control terminal, avoiding duplicated screens or conflicting commands.
Scope and Applicability
ISO 11783-1 applies to mobile machines used in farming and forestry that depend on data sharing for coordinated operation. This includes tractors, combine harvesters, seeders, balers, sprayers, and their attached implements. The standard is used by OEMs, software developers, telematics providers, and control system engineers who are designing systems where real-time command and sensor data must be exchanged smoothly.
It applies across crop farming, dairy operations, logging, precision agriculture, and in any scenario where an implement is connected to a tractor or towing vehicle and requires machine-to-machine communication.
Key Definitions
- ISOBUS: A standardized communication system based on CANbus that links tractors and implements
- ECU (Electronic Control Unit): A hardware module that manages and executes control functions within the machine
- Task Controller: A software module that interprets fieldwork plans and manages implement operation
- Virtual Terminal (VT): A user interface allowing operators to control and monitor attached devices
- CANbus: A digital protocol used for fast, reliable machine communication
Clause-wise Structure of ISO 11783-1
Clause | Title | Description |
1 | Scope | Explains which equipment and communications are addressed by the standard |
2 | Normative References | Lists other standards that are referenced across parts of ISO 11783 |
3 | Terms and Definitions | Key concepts like ECU, VT, CANbus, and task controller |
4 | Abbreviations | Defines short forms used throughout ISO 11783 |
5 | General Structure | Lays out the framework that all other parts of the standard are based on |
6 | Data Link and Physical Layer | Explains the role of CANbus and connector configurations |
7 | Device Classes and Naming | Describes how equipment and components are categorized |

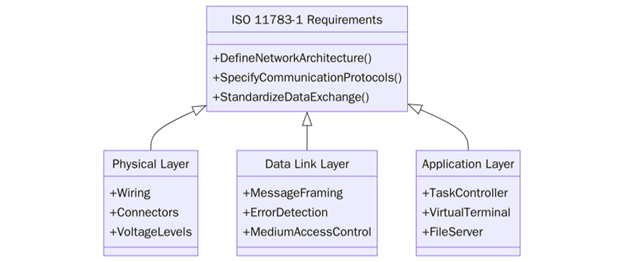

What are the requirements of ISO 11783-1?
Before applying ISO 11783-1, it is important to understand how machines must be configured to ensure consistent data exchange. Below are the typical implementation requirements:
- Define electronic control units (ECUs) that comply with CANbus structure
- Install connectors and wiring harnesses that support the ISO 11783 physical layer
- Implement Virtual Terminals (VT) that meet compatibility protocols
- Assign device classes and function instances according to naming standards
- Align machine controllers with common message formats for task controllers
- Verify proper device naming and function instance assignments as per ISO 11783 rules
- Assess task controller configuration for accurate job data execution and logging
- Confirm software updates are traceable and do not affect protocol stability
- Review documentation for all ECUs including network address claims and parameter groups
Meeting these requirements allows machines and implements to communicate without errors during field operations and simplifies multi-brand equipment use on farms.

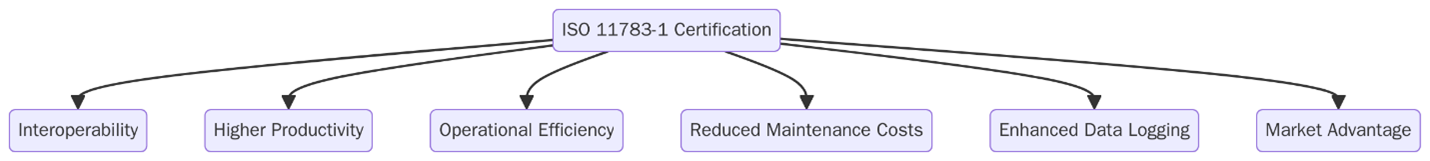

What are the benefits of ISO 11783-1 Certification?
To understand how this standard supports field operations and system compatibility, read the points below:
- Operators can connect tractors and implements from different brands without needing to rewire or adjust the system.
- During field operations machines can exchange live data such as GPS position, task progress and control signals.
- The standard reduces time spent configuring multiple machines before field tasks begin.
- Precision farming tools like variable rate application and mapping run accurately without manual data handling.
- Integrated GPS, sensors and automated controls work smoothly through machine-to-machine communication.
- Equipment using ISO 11783-1 can be added or replaced with minimal disruption to existing systems.
- A consistent virtual terminal interface reduces operator errors and simplifies use across different machines.
ISOBUS uptake has surged alongside growth in precision farming and mechanization. The global ISOBUS component market reached around US$2.1 billion in 2024 and is expected to rise to nearly US$3.9 billion by 2033 at an annual growth rate of approximately 7 %. Terminal units are projected to double in value to over US$1.6 billion by 2032, with an estimated 11 % annual growth.
Meanwhile efforts around High-Speed ISOBUS have shown data transfer rates thousands of times faster than traditional CAN-based systems. This shift enables real-time imaging, row-level control, and smarter automation. These advances mark a move toward faster, more intelligent, and more connected agricultural operations.
Eligibility Criteria
Any manufacturer of agricultural or forestry equipment with embedded control systems can adopt ISO 11783-1. This includes OEMs of tractors, trailers, harvesters, and electronic control unit developers. Small equipment producers, system integrators, and software developers working on field data platforms are also eligible to certify products based on ISO 11783 communication guidelines.
Certification Process: ISO 11783-1:2017
- Review existing system architecture and control modules
- Assess hardware readiness for CANbus-based communication
- Prepare system documentation including ECU lists and data flow maps
- Stage 1 Audit – Review of wiring, communication protocol, and message structure
- Stage 2 Audit – Field test verification and data transmission check
- Certification decision and issuance of certificate
- Annual surveillance to verify communication integrity and standard alignment
Timeline for ISO 11783-1 Certification
Certification typically takes 6 to 10 weeks from application to final decision. Projects that already follow CANbus principles may see quicker results. In cases where machines or ECUs need reconfiguration or software rework the timeline may extend due to testing and retesting in real-world field environments.
What is the cost of ISO 11783-1?
The cost of certification depends on equipment complexity, number of ECUs being evaluated, and whether ISO 11783-1 is certified alone or in combination with other parts. For small implement manufacturers the cost is usually limited to hardware validation and message protocol checks. For large equipment with integrated systems the audit scope and cost may be higher due to software dependencies and task controller compatibility testing.
How can Pacific Certifications help?
At Pacific Certifications, we work closely with manufacturers and system integrators in the agriculture and forestry sectors to assess and certify compliance with ISO 11783-1. Our audit process is built around real-world field usage, ensuring that your communication systems function accurately across different machines and conditions. Whether you’re looking to certify a single machine or a full equipment line, our team brings technical knowledge and audit readiness to the table.
- Evaluate CAN-based control systems for alignment with ISO 11783-1 structure
- Check compatibility across ECUs, task controllers, and virtual terminals
- Audit message structures and interface layouts for standard conformance
- Review wiring harnesses and connector designs for physical layer accuracy
- Conduct field tests to validate multi-brand interoperability
- Support combined audits with ISO 9001 or ISO 21406 where applicable
Our team helps ensure your systems are built to work reliably across brands and tasks.
Training and Courses
Lead Auditor Training
Covers audit methods for ISO 11783 and related standards for mobile machinery.
Lead Implementer Training
Guides technical teams through planning, ECU validation, and message mapping.
Internal Auditor Training
Helps manufacturers review their own communication protocols and VT integration.
Pacific Certifications provides accredited training programs. If your organization is looking for ISO 11783 training, our team is equipped to help you. Contact us at support@pacificcert.com
FAQs
Is ISO 11783 only for tractors?
No, it applies to all machines that exchange electronic data in agricultural or forestry settings including sprayers, harvesters, and implements.
Do we need to change our hardware to comply?
If your machines already use CANbus systems, most hardware may be compatible. However, connectors and message formats may still require updates.
Is this a one-time certification?
No, certification is valid for three years with annual checks to ensure communication consistency.
Can ISO 11783-1 be paired with other ISO standards?
Yes, it is often used with ISO 9001, ISO 25119 (functional safety), and ISO 21406.
Is certification mandatory to sell in international markets?
While not legally required, certification helps gain access to larger farms and government tenders requiring ISOBUS compatibility
